Verbindingsrail - PTFIX 1,5-KNX-NS35 (1187192)

10 stuks VERBINDINGSRAIL - PTFIX 1,5-KNX-NS35

Velbus - 1187192

Kenmerken 1187192

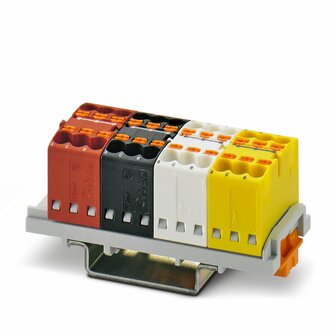

DIN rail verbindingsblok voor Velbus installaties Elke set bestaat uit: * PTFIX 6X1,5 RD - Rode connector - 3002765 * PTFIX 6X1,5 BK - Zwarte connector - 3002781 * PTFIX 6X1,5 WH - Witte connector - 3002778 * PTFIX 6X1,5 YE - Gele connector - 3002768 * PTFIX 1,5-NS35 - DIN rail adapter - 1049497 Elke connector kleur bevat 6 aansluitingsklemmen.- Rood (+): Spanning 15V (± 3V)
- Zwart (-): Spanning GND
- Geel (H): CANbus Hoog
- Wit (L): CANbus Laag
Specificaties 1187192
- overspanningscategorie:
 - overspanningscategorie: III
 - Degree of pollution: 3
- Electrical properties:
 - Rated surge voltage: 6 kV
 - Maximum power dissipation for nominal condition: 0.56 W
- Connection data:
 - Nominal cross section: 1.5 mm²
 - Rated cross section AWG: 14
 - Stripping length: 8 mm ... 10 mm
 - Internal cylindrical gage: A1 / B1
 - Connection in acc. with standard: IEC 60947-7-1
 - Conductor cross section rigid: 0.14 mm² ... 2.5 mm²
 - Cross section AWG: 26 ... 14 (converted acc. to IEC)
 - Conductor cross section flexible: 0.14 mm² ... 1.5 mm²
 - Conductor cross section, flexible [AWG]: 24 ... 14 (converted acc. to IEC)
 - Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 1.5 mm²
 - Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 1.5 mm²
 - Nominal current: 17.5 A
 - Maximum load current: 22 A
 - Maximum total current: 26 A
 - Nominal voltage: 500 V
 - Conductor cross section rigid: 0.34 mm² ... 2.5 mm²
 - Conductor cross-section flexible (ferrule without plastic sleeve): 0.34 mm² ... 1.5 mm²
 - Flexible conductor cross section (ferrule with plastic sleeve): 0.34 mm² ... 1.5 mm²
- afmetingen:
 - breedte: 21.6 mm
 - hoogte: 58.1 mm
 - Depth: 24.4 mm
 - Depth on NS 15: 29.9 mm
 - Depth on NS 35/7,5: 31.9 mm
 - Depth on NS 35/15: 39.4 mm
- Material specifications:
 - Flammability rating according to UL 94: V0
 - Insulating material group: I
 - Insulating material: PA
- Environmental and real-life conditions:
 - Ambient temperature (operation): -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
 - Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
 - Ambient temperature (assembly): -5 °C ... 70 °C
 - Ambient temperature (actuation): -5 °C ... 70 °C
 - Permissible humidity (storage/transport): 30 % ... 70 %
- Standards and regulations:
 - Connection in acc. with standard: IEC 60947-7-1
- montage:
 - Mounting types: NS 15, NS 35/7,5, NS 35/15

EAN-code: 4063151230456
