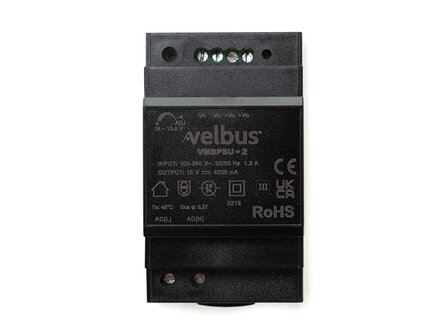

Velbus DIN rail voeding 15VDC - 4A (VMBPSU-2)

VELBUS DIN RAIL VOEDING 15VDC - 4A

Velbus - VMBPSU-2

Kenmerken VMBPSU-2
De Velbus DIN-rail voeding is speciaal ontwikkeld voor veeleisende domotica-toepassingen die een stabiele AC/DC-converter nodig hebben met bescherming tegen kortsluiting, overstroom en overspanning. De 13,5 tot 18,0 instelbare uitgangsspanning, CAT III-classificatie (EN 61558-1) en 60 W uitgangsvermogen maken dit een perfecte oplossing voor uw Velbus-toepassingen.- Ultra slim step-shape 3SU DIN Rail Power Supply
- Industrial-grade with OVC III EN61558-1 safety standard
- Universal 85-264VAC or 120-370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Short circuit, over-current and over-voltage protection
- Low standby power consumption, high efficiency
- DC output voltage adjustable between 13.5 and 18VDC
- Large operating ambient temperature range: -40? to +70?
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Withstand 300VAC surge input for 5s
- DIN rail TS35X7.5/ TS35X15 mountable
- ledindicator aan/uit
Specificaties VMBPSU-2
- Output Specifications:
 - Output power: 60W
 - Nominal Output Voltage (Vo): 15V
 - Nominal Output Current (Io): 4A
 - Output Voltage Adjustable Range ADJ: 13.5V -18.0V
 - Max Capacitive Load: 8000 µF
 - Output Voltage Accuracy (0%-100% load): 2%
 - Line Regulation (rated load): 0,5%
 - Load Regulation (230VAC): 1,5%
 - Output Ripple & Noise (20MHz bandwidth peak-to-peak value): 120mV
 - Temperature Coefficient: 0,02 %/°C
 - Stand-by Power Consumption with 230VAC input: 0,3W
 - Short Circuit Protection: Hiccup, continuous, self-recovery
 - Over-current Protection: bigger or equal to 120%lo, self-recovery
 - Over-voltage Protection: less or equal to 20V (output voltage clamp or hiccup)
 - Minimum Load: 0%
 - Start-up Delay Time: 3s
 - Hold-up Time: 15ms @ 115VAC - 80ms @ 230VAC
 - Power Derating: 8.0%/°C (-40°C to -30°C), 2.0%/°C (+45°C to +70°C), 1.0%+VAC (85VAC-100VAC)
- Input Specifications:
 - AC Input Voltage Range: 85-264VAC
 - DC Input Voltage Range: 120-370VAC
 - Input Frequency range: 47-63 Hz
 - Efficiency at 230VAC Typ.: 89%
 - Max Input Current: 1.2A @ 115VAC, 0.8A @ 230VAC
 - Typical Inrush Current: 30A @ 115VAC, 60A @ 230VAC
 - Max Leakage Current at 264VAC: 0.25mA RMS
- Environmental specifications:
 - Operating Temperature range: -40°C, +70°C
 - Storage Temperature range: -40°C, +85°C
 - Max. Storage Humidity: 95 %RH
 - Max. Operating Altitude: 2000 m
- veiligheid & EMC:
 - Safety Standard: CAT III rating (EN 61558-1)
 - MTBF (MIL-HDBK-217F@25°C): >300.000h
 - Isolation Input-output Electric strength test for 1min. (leakage current <5mA): 4000 VAC
 - Electromagnetic Compatibility (EMC): CE approved
- Mechanical Specifications:
 - Case Material: Plastic, heat-resistant (UL94V-0)
 - Package Dimensions: 92.66 x 52.00 x 58.00 mm (h x w x d)
 - Weight: 175g (Typ.)
 - Cooling Method: Free air convection
 - Wire range: 24-12 AWG
 - Tightening torque: Max 0.4 Nm
 - Mounting rail: TS35

EAN-code: 5410329751845
